Samsung Fridge - Family Hub / AutoFill Issues

Oct 20
1 min read

Model: RF90F23AECEAA

Location: Cape Coral, FL 33991


Repair Summary

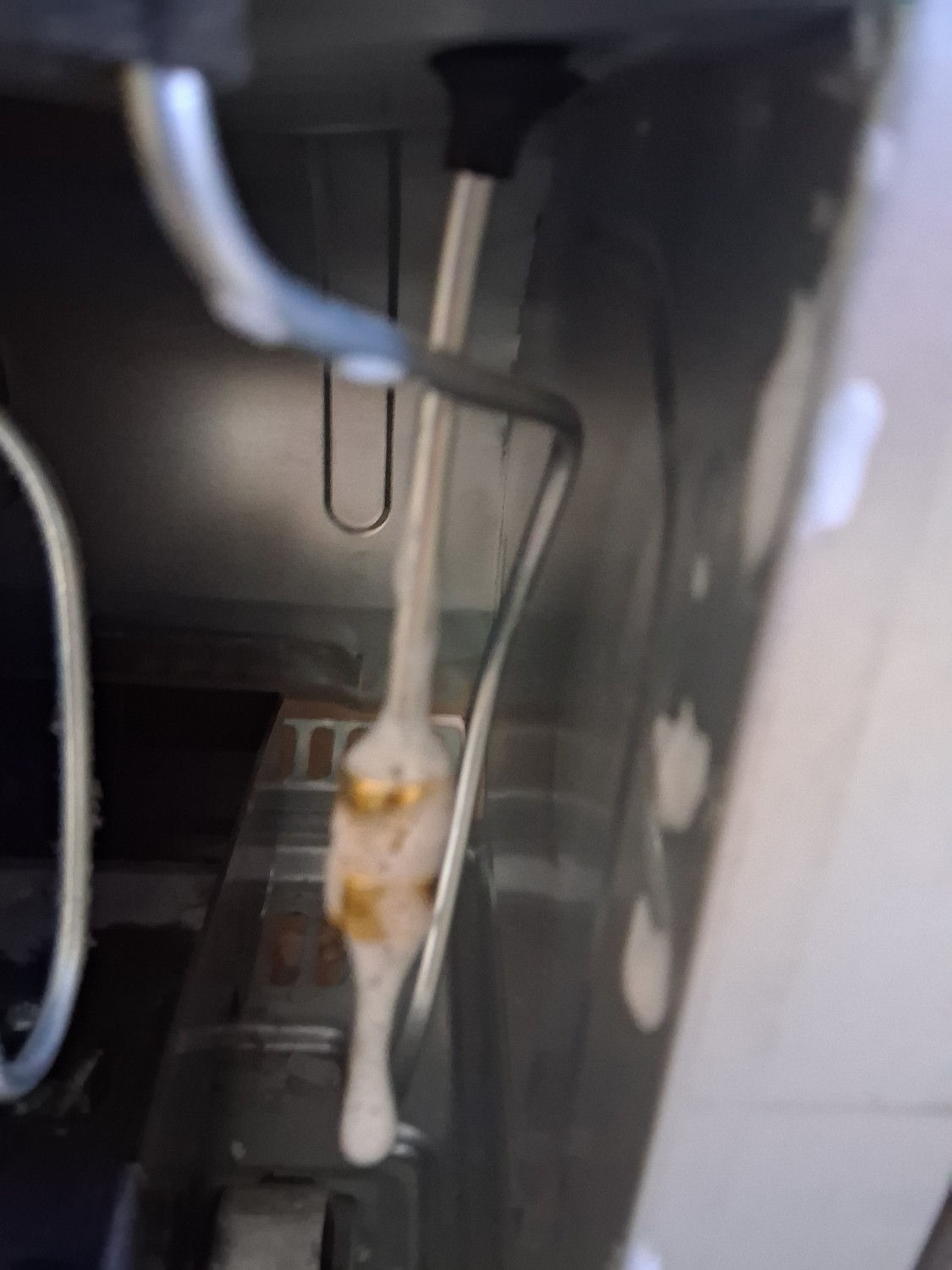

Checked refrigerator for an inoperative Family Hub display and automatic water dispensing system. Connected HASS diagnostic software and retrieved four stored error codes associated with the main control board. Advised the customer that the communication issue needed to be addressed first to restore proper refrigerator operation. Further inspection of the sealed system revealed a refrigerant leak at the high-side connection. Determined that sealed system repairs were necessary, along with replacement of the unresponsive Family Hub display and defective Beverage Center assembly.

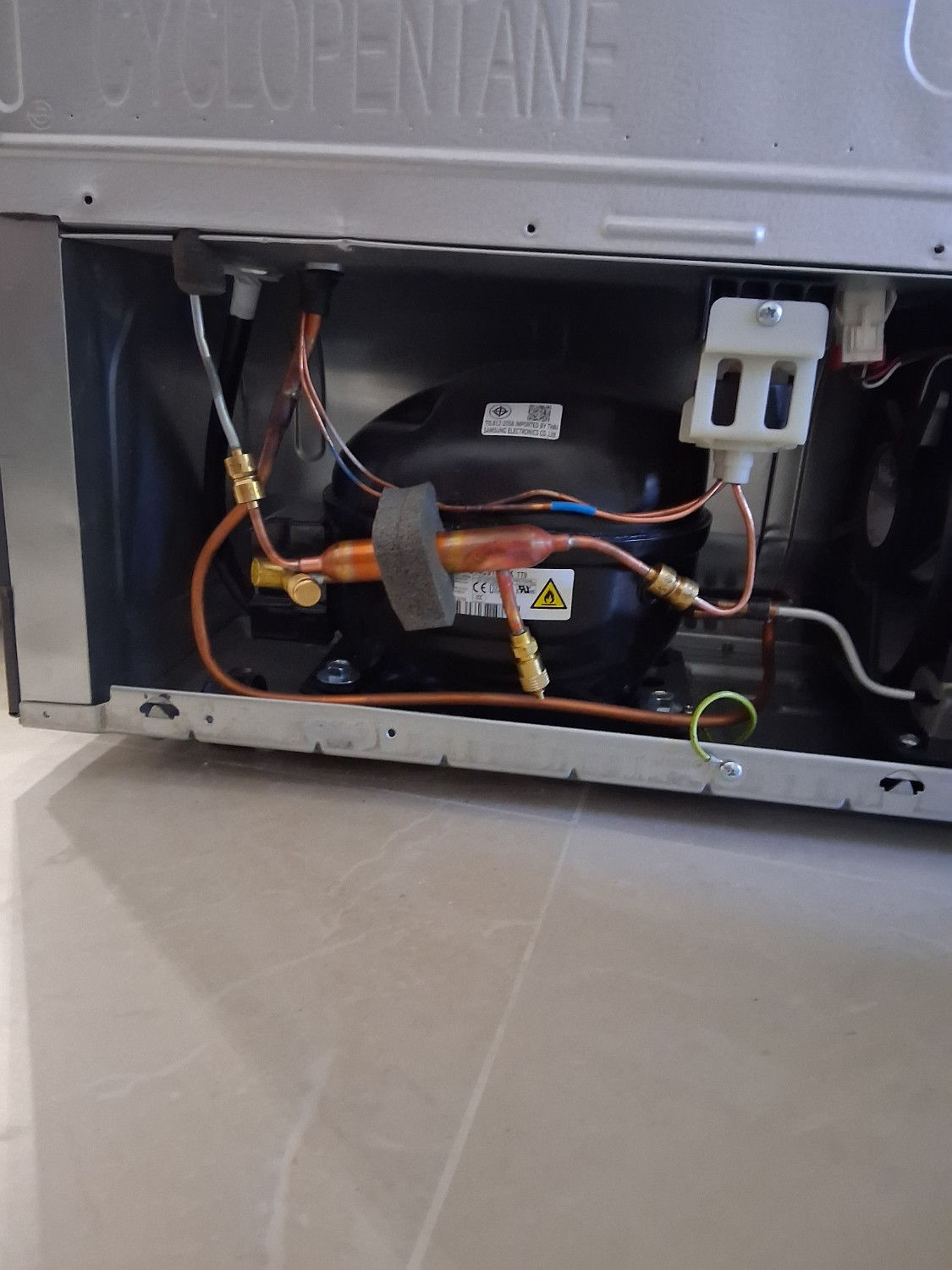

Installed a new service port, filter drier, and high-side coupler. Pressurized the sealed system to 350 PSI with nitrogen and performed a bubble leak test on all connections; no leaks were detected. Evacuated the sealed system to 600 microns and recharged the refrigerator with 78 grams of R600a refrigerant. Replaced the Family Hub assembly to correct the blank, unresponsive display and replaced the Beverage Center assembly due to the water valve not opening completely. Connected HASS diagnostic software and performed operational testing following the repairs. Verified that the refrigerator was functioning properly and operating according to manufacturer specifications. Unit checks normal at this time.
